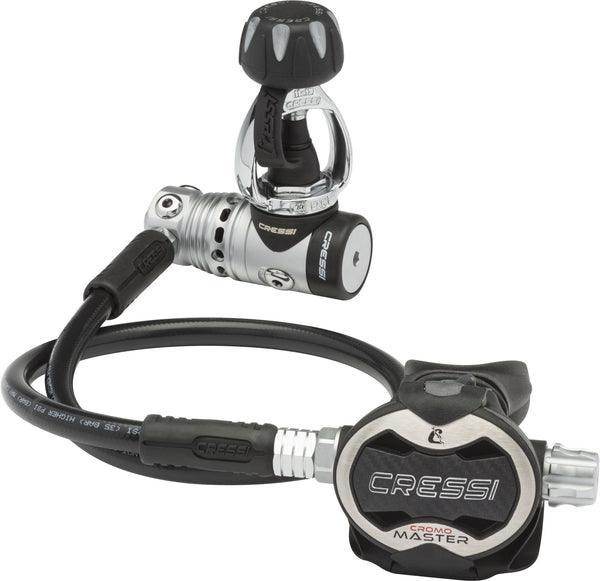

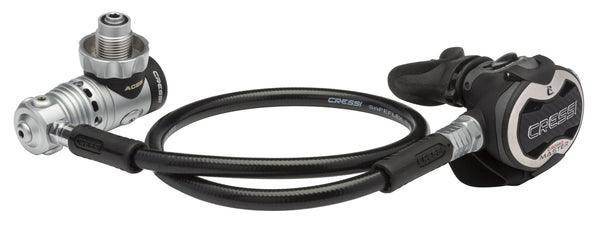

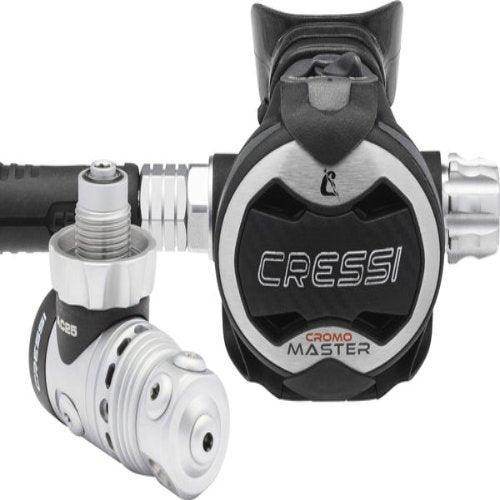

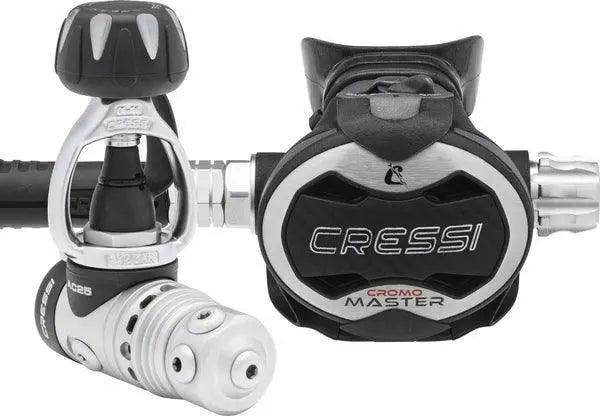

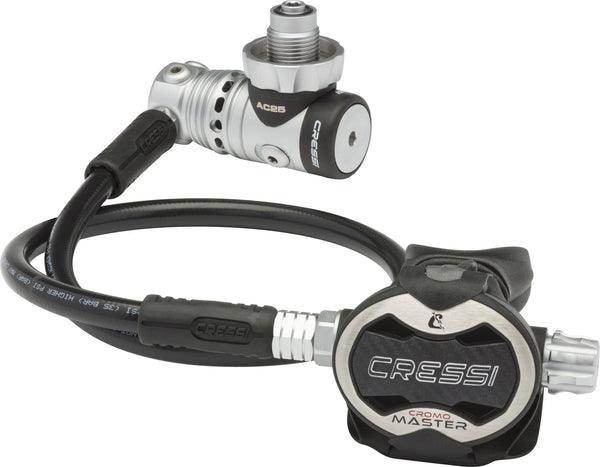

AC25M + Master Cromo Regulator

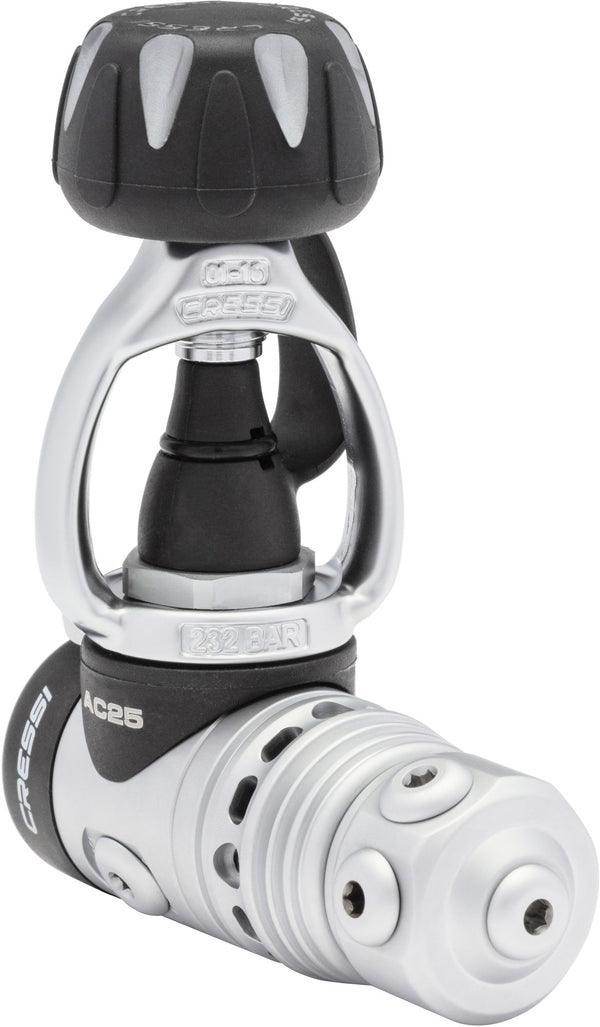

The AC25 is the 3rd generation of Cressi’s ip adjustable balanced piston 1st stage. This regulator meets the requirements of the last European regulation EN 250:2014 and it is certified for use in water over 10°C (50 F).

FEATURES

• 2 high-pressure ports and 5 low-pressure ports.
• 4 low-pressure ports are located on a rotating turret that ensures that regulator and instrument connections are always in the right position. The 5th port is a co-axial hi-flow port and is located at the top of the turret. The rotating turret swivels on 360° axis and features 5 low-pressure ports designed to allow the use of more connections without interfering between them.
• It features the external direct ip adjustment system that can be set using a simple allen key.
• The hi-flow conic shape filter is the same for int and din.
• The spring and the spring bush are coated preventing rust.
• Its technologically advanced design delivers consistent intermediate pressure and high performance even with low tank pressures.
• The ac25m features a matte finish, in gun metal-coated brass. It is combined with the master cromo, the pneumatic balanced 2nd stage that features an elliptical shape and a lateral knob for venturi adjustment

TECHNICAL FEATURES

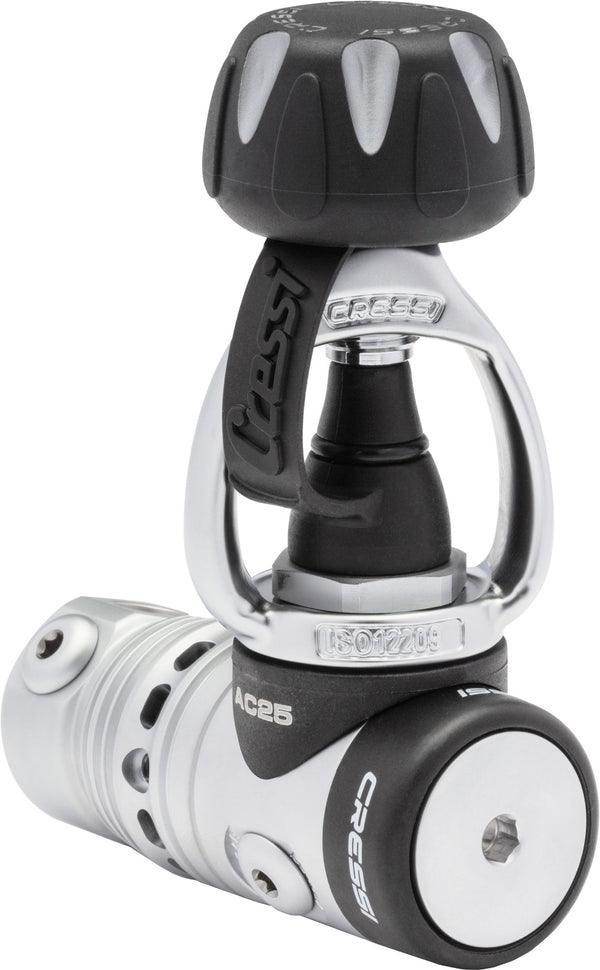

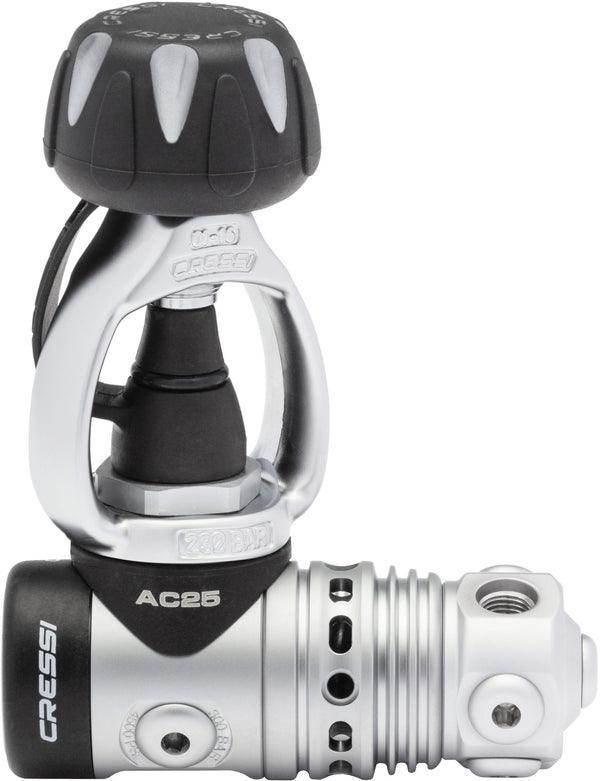

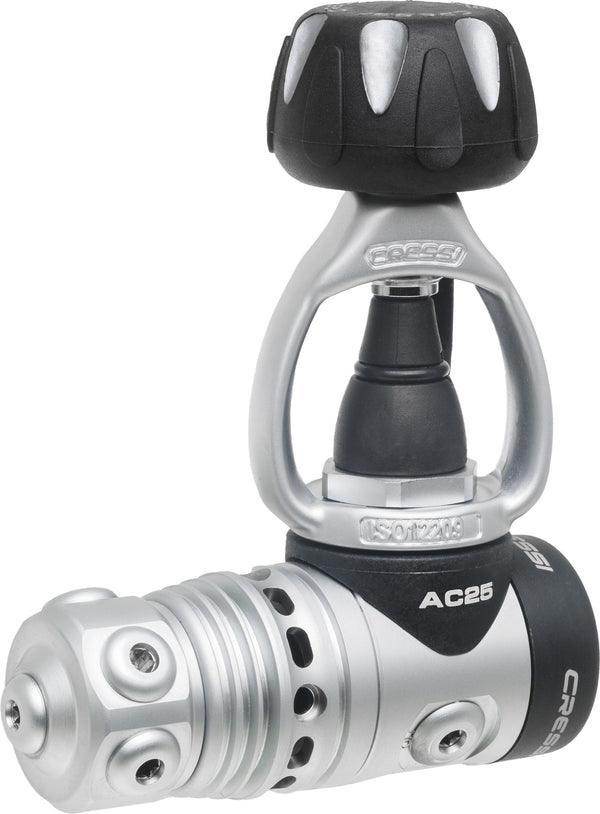

Technical features 1st stage

• 3rd generation Cressi’s ip adjustable balanced piston 1st stage
• 2x 7/16” hp ports unf
• 5x 3/8” lp ports unf, 1 port on turret top

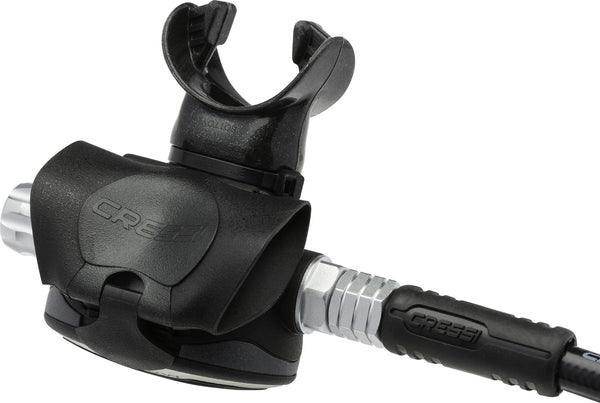

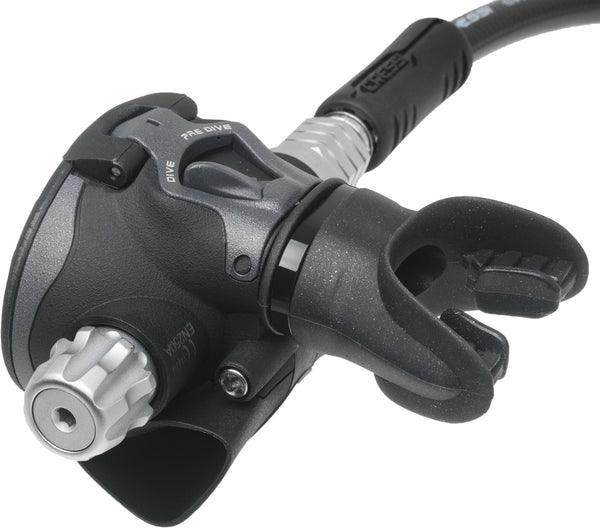

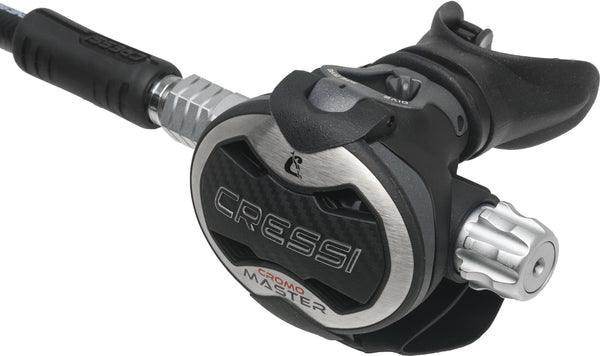

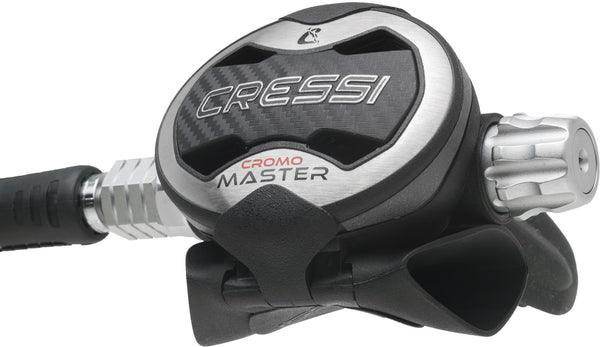

Technical features 2nd stage

• Pneumatically balanced
• Adjustable venturi
• Adjustable inhalation effort
• Patented elliptical diaphragm
• Patented low-friction lever
• Air delivery system without injector
• Adjuster knob coated with pvd process with dual or Internal heat exchanger
• Cap opening with cam-lock
• Noise-absorbing technopolymer body
• Removable technopolymer deflector
• Removable mechanics
• Weight without hose: 207 gr
• Combination performance
• Average breathing effort 0.78 j/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification en250/2014 a>10°c

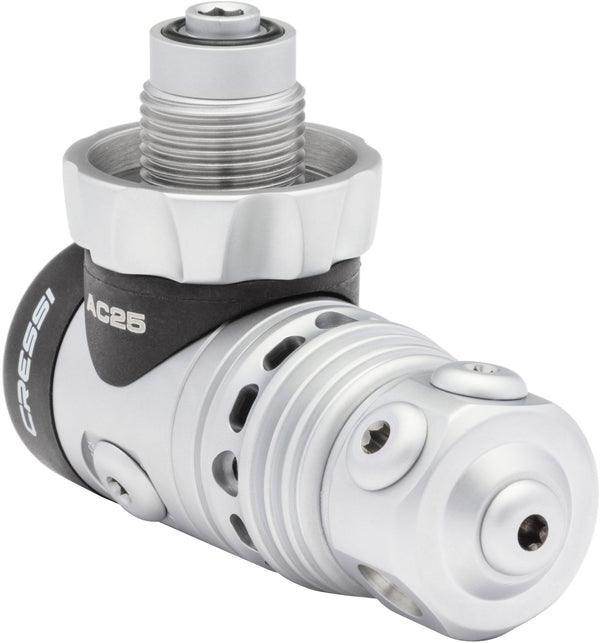

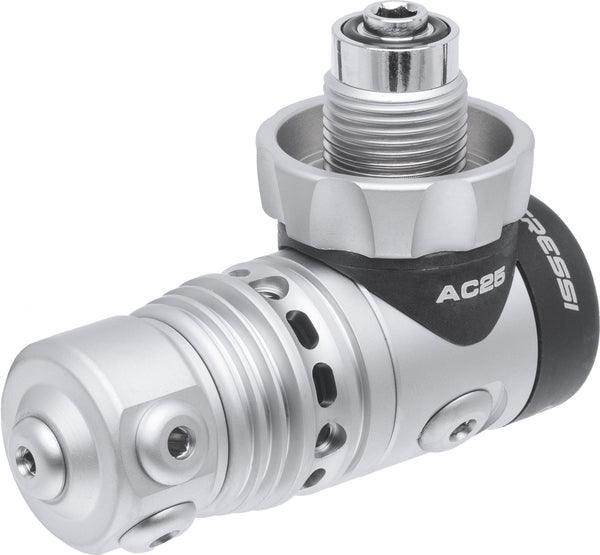

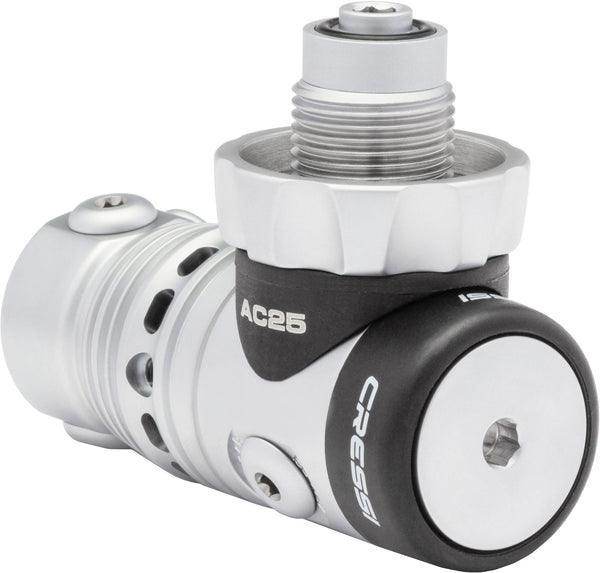

Operating pressure

• Int version: 230 bar | 3,336 psi
• Din version: 300 bar | 4,351 psi
• Calibration pressure: 9.8/10 bar | 142/146 psi
• 360° revolving head
• Realized in brass-coated, with a matte finish
• The sintered conical filter protects from any impurity
